Aluminium Honeycomb Panel

New age material that’s used for building exteriors, interior applications, and signage.

Honeycomb Panels

Experience the magic of Honeycomb Aluminium Panels with Aludecor - India's most trusted ACP manufacturing brand. Aludecor's Honeycomb Composite Panels boast system components that are bonded in a continuous process for reinforced strength.

Aludecor's Honeycomb Aluminium Panels offer excellent resilience and toughness by showcasing exceptional peel strength and toughness. Unlike other Honeycomb Panels, it never becomes hard or brittle. Having great tensile strength of the cover sheets, beautiful aesthetics features and outstanding processing qualities, Aludecor Honeycomb Aluminium Panels have become the favourite of Architects, Planners and Designers.

The Product

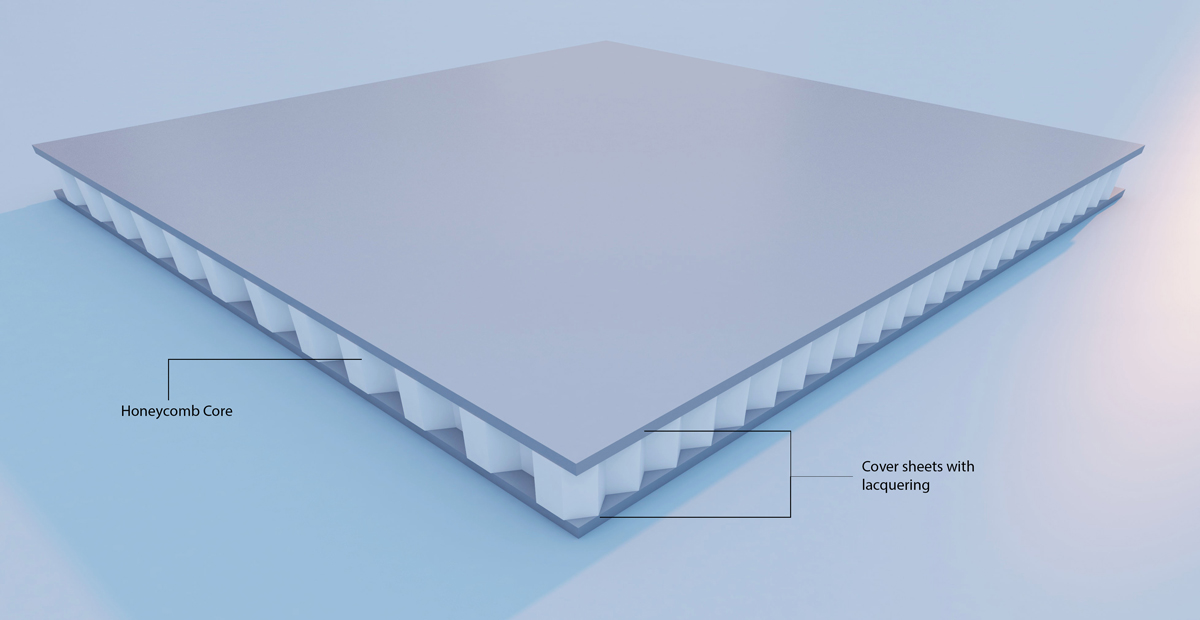

Aludecor's Honeycomb Aluminium Panels are also extremely light in weight, yet it has high rigidity. The secret lies in our PU/Epoxy based -2K for better bonding and strength that brings together the system components like the Aluminium Core and the coil-coated Aluminium Cover Sheets. It is ideal to be used as a Facade material in Architecture and False Ceilings in Interior Constructions.

Structure

  • H – total thickness (10-25mm)
  • L – Length (2000-9600mm)
  • d1 – thickness of Al cover sheet (front side 0.5/1.0 mm)
  • d2 – thickness of Al cover sheet (rear side 0.5/1.0 mm)


Properties of Aluminium Honey Comb Core shall be as per ASTM Standards.


Technical Properties

Alloy Top & Bottom Aluminium Sheet

AA3003/AA3105/ AA5005

Elasticity Modulus N/mm2

70000

Tensile Strength N/mm2

Min. 115

Proof Stress N/mm2

Min. 70

Elongation A50

Min 2%

Coating

Top Skin

PVDF/FEVE

Bottom Skin

PVDF/FEVE/Service Coat

Core Alloy

AA3003/AA5052

Compressive Strength N/mm2

1.22

Density Kg/m3

45


Panel Colour: Aludecor Honeycomb Panels are available in Aludecor’s Timber, Rustic, Sand, Pedra, Cortina, and AL-45 shades/series.

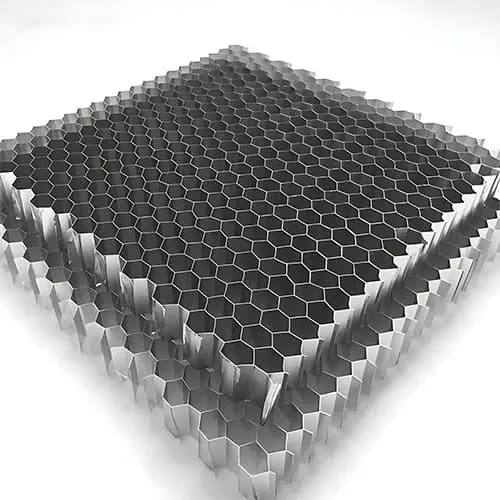

The honeycomb core consists of aluminium foils made of the alloy AA3003/AA5052

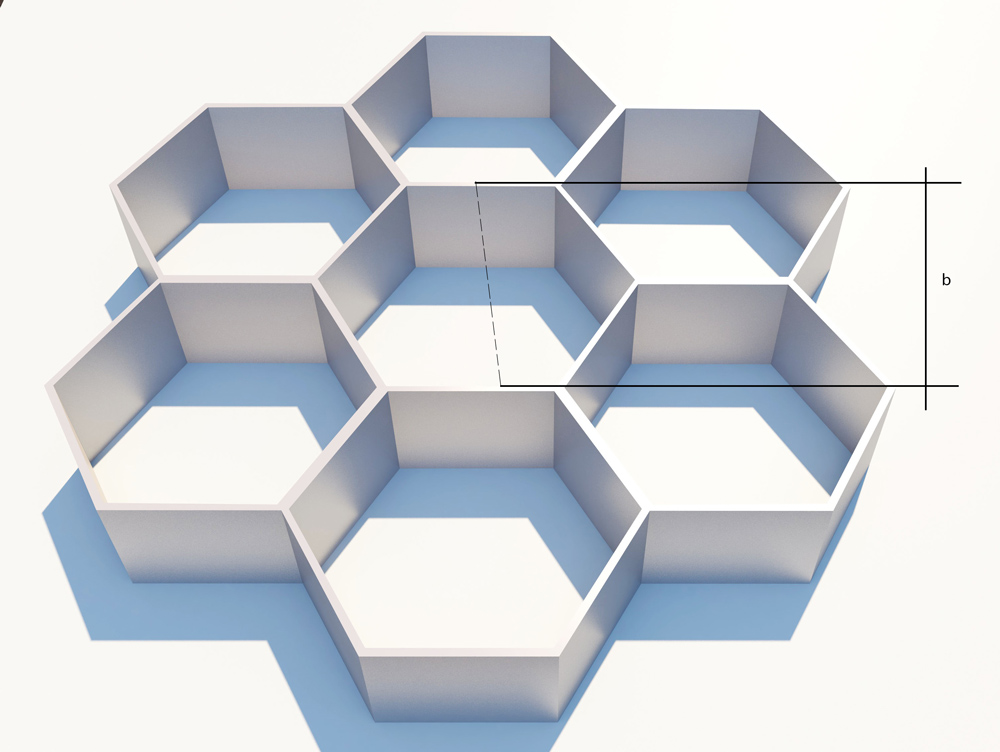

Cell size b – approx. 9.5 – 12.7mm

The cover sheets of Aludecor Honeycomb Panels may be used in functional or decorative areas basis the application purposes.

Fire Rating:

The material is non-combustible and non-Melting type.

The panels are Fire Rated according to the classification EN 13501-1 Class B s-1 d0

Aluminium Honeycomb Panels

S.No.

Description

Properties

1

Cover sheet



a

Alloy

3003/3105/5005

b

Thickness

0.5mm to 1mm

2

Honey Comb



a

Thickness

8mm/8.6mm/9mm/10mm/ 10.6mm/ 11mm/ 23mm/23.6mm/24mm

b

Cell Size

9.5mm/12.7mm



Foil thickness

0.05mm/ 0.07mm



Alloy

3003/5052

3

Total Panel Thickness

10mm/12mm/25mm

4

Panel Dimensions



a

Width

1200mm/ 1250mm/1500mm

b

Length

2000mm-9000mm

The Advantages of Aludecor's Honeycomb Aluminium Panels:

  1. Aludecor's Honeycomb Aluminium Panels guarantee the best in class, unbeatable product quality.

  2. Aludecor's Honeycomb Aluminium Panels showcase excellent peel strength.

  3. Aludecor's Honeycomb Sandwich Panel never gets brittle-hard but shows tough and resilient properties.

  4. Aludecor's Honeycomb Aluminium Panels are light in weight yet high in rigidity.

  5. The surfaces are clean, and the aesthetics are outstanding.

  6. Aludecor's Honeycomb Aluminium Panels offer good air-borne sound insulation.

  7. Aludecor's Honeycomb Aluminium Panels never releases CFC containing substances in its lifetime.

  8. Aludecor's Honeycomb Aluminium Panels are fully recyclable.

Application Areas:

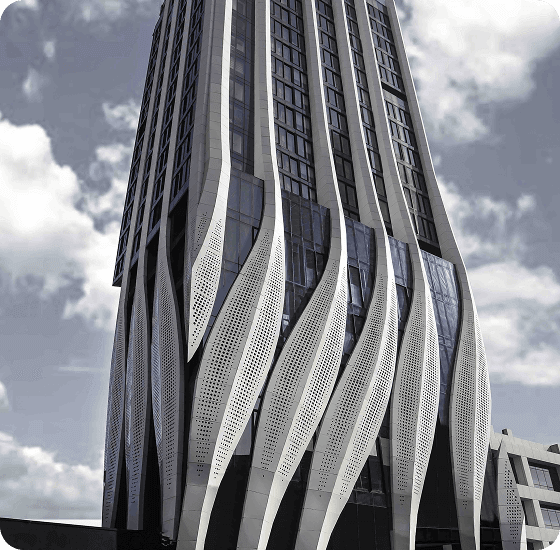

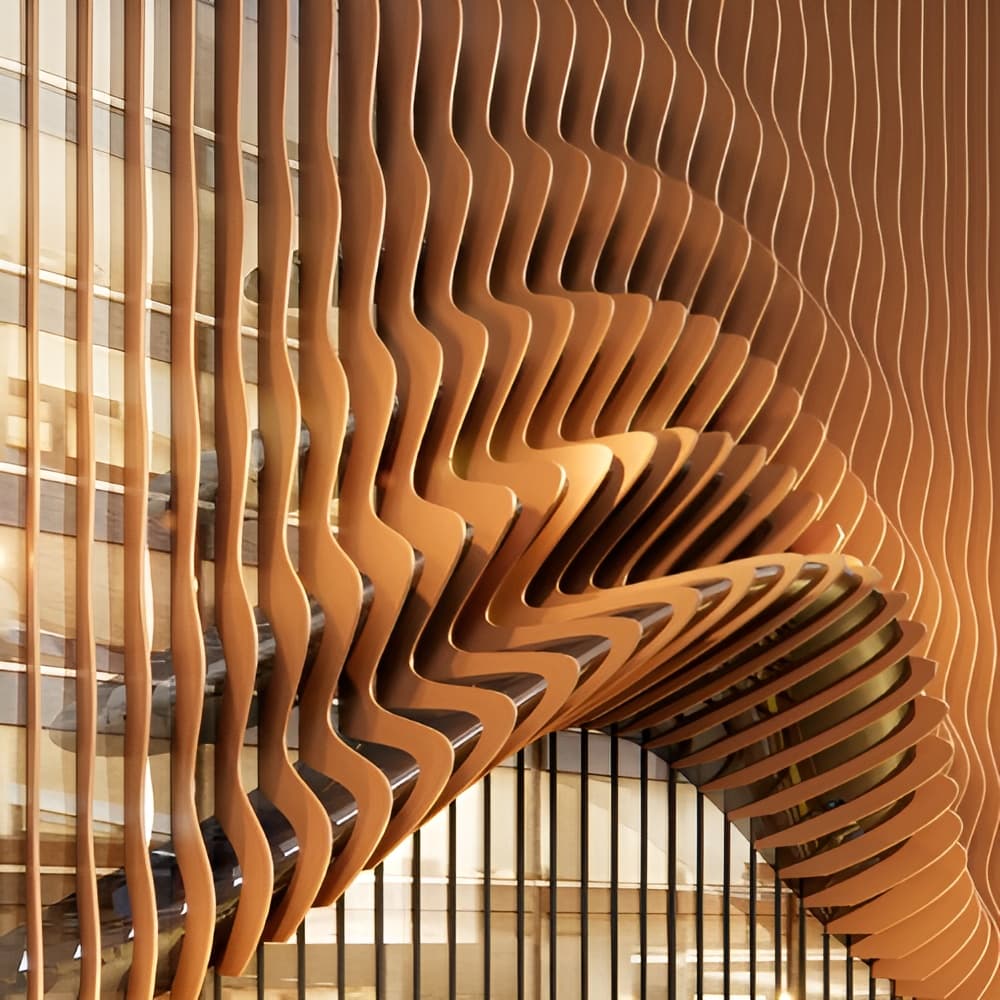

Aludecor Honeycomb Panels are not only an exemplary choice for the architectural application like façade cladding, but are also perfect to be used for interior applications, such as a false or artistic ceiling
